What Is a Disconnect Switch?
Disconnect Switch is a manually operated device that separates electrical power from equipment or a circuit. The switch provides a clear means to isolate connected wiring during service, inspection, or an emergency. A disconnect may be installed near equipment, within sight of it, or as part of an electrical enclosure.
Quick Facts About Disconnect Switch
Category
Electrical isolation device
Used for
Separating equipment from power
Common confusion
Not every circuit breaker serves as an equipment disconnect
Also called
Safety Disconnect, Service disconnect
Often discussed with
Hot Tub Wiring
Key Takeaways About Disconnect Switch
- A disconnect switch isolates equipment from its power source.
- Location helps technicians identify which equipment the switch controls.
- A circuit breaker is not always the same device as a disconnect switch.
How Disconnect Switch Works

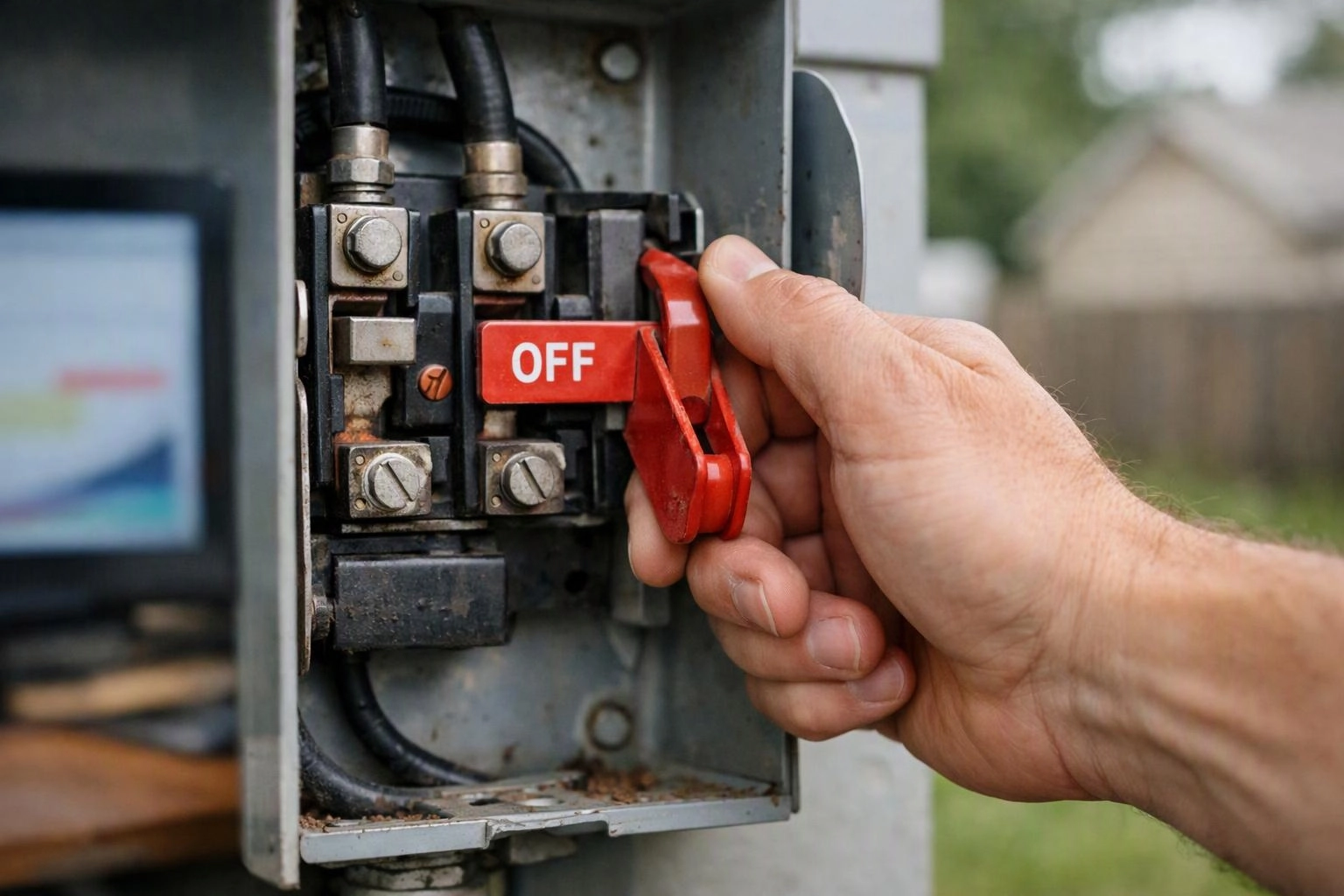

A Disconnect Switch opens the conductors that supply an electrical load. Opening the switch creates an isolated condition on the equipment side, while closing it restores the connection to the supply. The switch handle usually shows whether the contacts are open or closed.
Related glossary terms: Ground Fault, Electrical Load, Line Voltage.
Disconnect switches may be fused or unfused. A fused model combines isolation with overcurrent protection, while an unfused model provides isolation without replacing the circuit's protective device. The switch must match the equipment, wiring method, and electrical load. A nearby enclosure can help identify the correct disconnect for a hot tub, air conditioner, or other fixed appliance.
For hot tub wiring, the disconnect separates the tub's equipment pack from its supply conductors. A GFCI protects against ground-fault current, while the disconnect provides a separate means of isolation. These devices perform different functions and may appear in the same installation.
From the Chris Miller Electric team
When we inspect a disconnect switch, we check its labeling, enclosure condition, conductor terminations, and relationship to the equipment it serves. We also verify that the switch operates properly and that the hot tub wiring has the appropriate protective devices. Our team treats the disconnect as part of the complete circuit, not as an isolated box.
Disconnect Switch in Practice: A Real-World Example
A hot tub installation may include a disconnect switch near the equipment area. Opening that switch separates the tub equipment from its supply, while the circuit's protective device continues to serve its separate function.
