Does wire gauge identify the wire's insulation type?

No. Wire gauge describes the conductor size. Insulation type depends on the cable construction, environmental rating, and intended installation.

Can different wire gauges connect within one circuit?

Different gauges can appear in one circuit only when the complete installation remains properly protected and compatible. An electrician checks the smallest conductor and circuit protection.

Why can a long wiring run need a different gauge?

A long wiring run can create greater voltage drop. The circuit length, load, conductor material, and installation conditions help determine a suitable gauge.

Glossary

What Is Wire Gauge?

Wire gauge is a standardized way to describe a conductor's diameter and current-carrying capacity. The gauge designation helps electricians select wire that matches a circuit's electrical load, installation method, and acceptable voltage drop. Smaller gauge numbers generally identify thicker conductors, while larger gauge numbers generally identify thinner conductors.

Quick Facts About Wire Gauge

Key Takeaways About Wire Gauge

Gauge numbers describe conductor size, not insulation color.
Circuit load and installation conditions guide wire selection.
A larger gauge number does not mean thicker wire.

How Wire Gauge Works

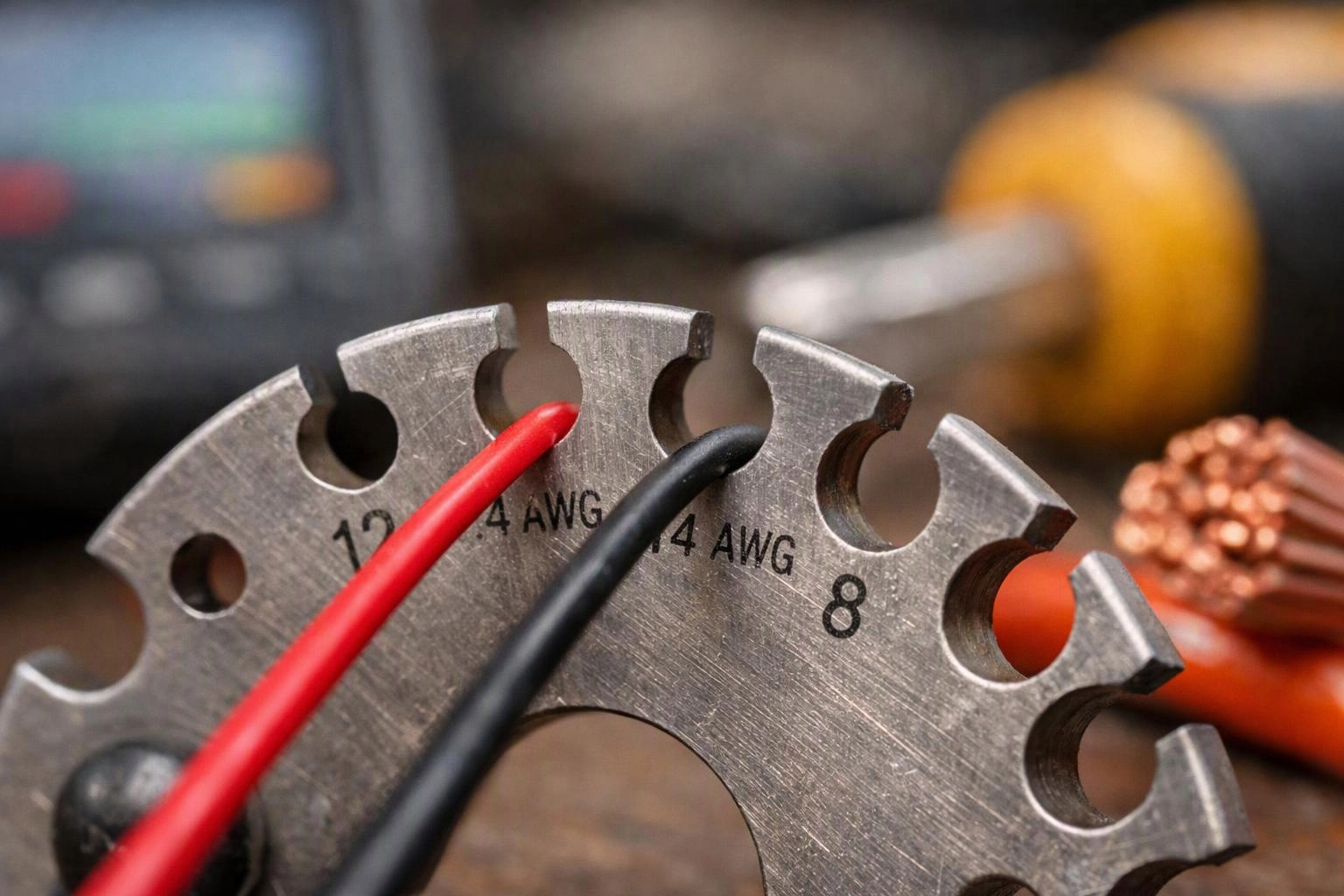

A wire stripping gauge with red and black wires threaded through its metal cutouts on a workbench

Wire gauge identifies the size of a conductor by its diameter. The designation relates to how much current the conductor can carry without excessive heating under the conditions of the installation. Gauge markings apply to the metal conductor, not the outside insulation.

Related glossary terms: Electrical Load, Voltage Drop, Branch Circuit.

Electrical wiring repair requires matching the conductor to the circuit's load and layout. A thicker conductor usually offers lower resistance, while a thinner conductor may suit a lighter load. The same gauge may appear with different insulation types, so electricians also check the cable construction, terminal fit, and circuit protection.

Voltage drop can affect gauge selection on longer wiring runs. An electrician checks the existing conductor and the circuit's purpose before replacing damaged wiring. Installing a conductor that is too small for the circuit can create heat and performance problems.

A man in a safety vest examines a small metal label in an office with shelves and a computer monitor

From the Chris Miller Electric team

When we inspect wiring, we identify the conductor gauge and compare it with the circuit's breaker, load, cable condition, and installation path. We also check whether damaged sections require a matching repair or a broader correction. Our team treats gauge markings as one part of a complete wiring assessment.

Wire Gauge in Practice: A Real-World Example

A homeowner finds overheated wiring near an outlet during an electrical wiring repair. We check the conductor gauge, circuit protection, connections, and connected load before selecting replacement wiring that fits the circuit.
