What Is a Pigtail?
A pigtail is a short length of electrical wire that joins multiple conductors to a terminal, device, or grounding point. The pigtail connects within an electrical box, allowing the circuit conductors to continue while a receptacle, switch, or other device receives a separate connection. Electricians form pigtails with approved connectors and matching conductors.
Quick Facts About Pigtail
Category
Electrical wiring connection
Used for
Connecting devices and conductors
Common confusion
A pigtail is not a complete circuit by itself
Also called
Electrical Pigtail, Wire pigtail
Often discussed with
Outlet Repair
Key Takeaways About Pigtail
- A pigtail is a wire connection inside an electrical box.
- The connection can keep circuit conductors continuous at a device.
- A pigtail is not the same as a loose wire splice.
How Pigtail Works
A pigtail joins conductors inside an electrical box through a wire connector. One end connects to the circuit conductors, while the other end attaches to a device terminal or grounding point. The connection keeps the device lead separate from the conductors that continue through the box.
Related glossary terms: Branch Circuit, Junction Box, Neutral Wire.

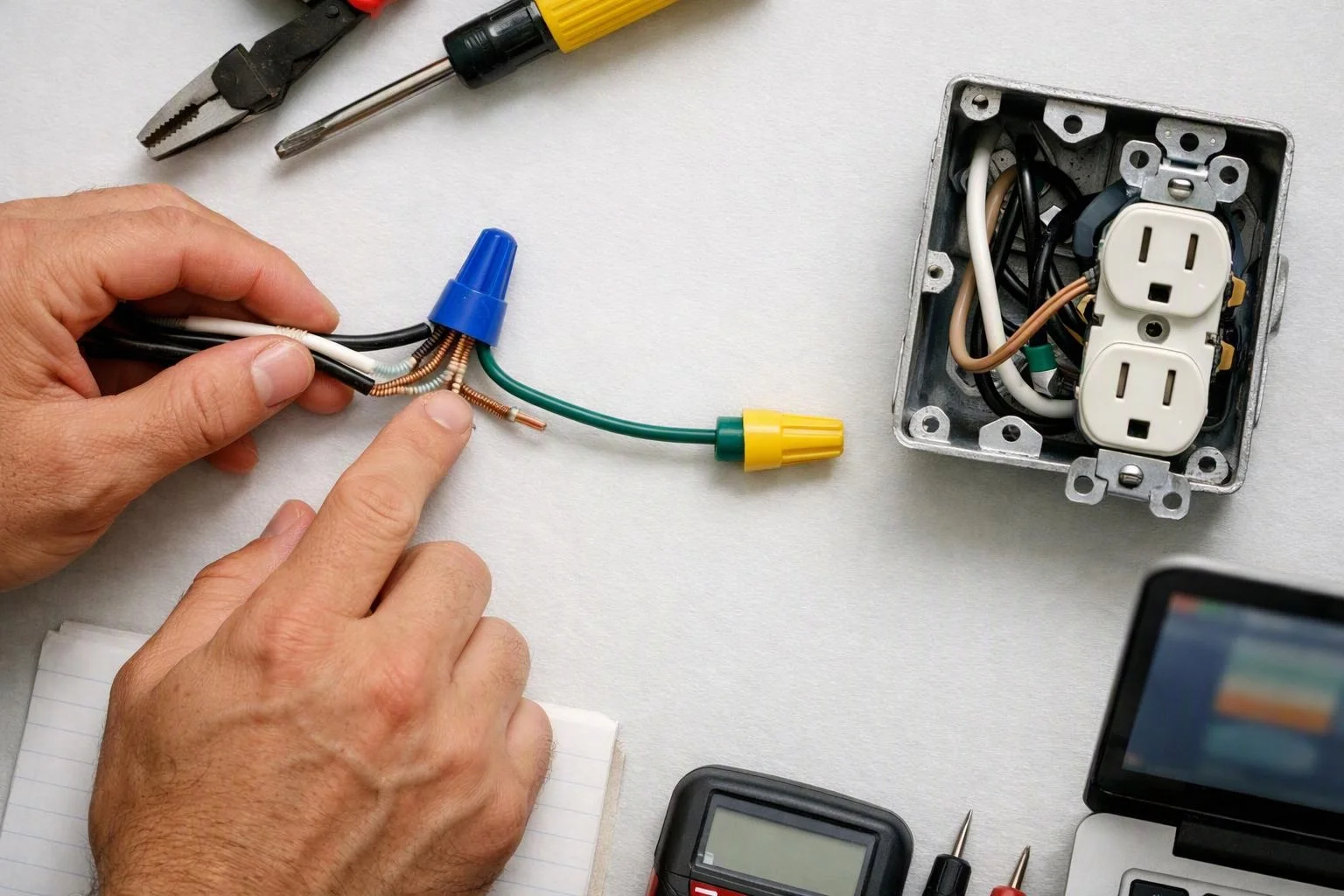

For an outlet repair, an electrician checks the conductor condition, wire size, and connection method before making a pigtail. The device terminal must receive a secure connection that matches the circuit design. A wire nut or another approved connector holds the joined conductors together, while the pigtail extends to the outlet.
A grounding pigtail may connect the grounding conductors to the outlet and the metal box. A neutral pigtail can connect several neutral conductors to a device without placing multiple wires under one terminal.
From the Chris Miller Electric team
When we inspect a pigtail during outlet repair, we check the wire condition, conductor arrangement, and connector security. We also confirm that the pigtail reaches the correct device terminal and that the outlet box has room for the connection. Our team corrects damaged or poorly arranged wiring before installing the outlet.
Pigtail in Practice: A Real-World Example
An outlet repair may require a pigtail when circuit conductors continue to another outlet while the repaired outlet needs its own lead. The electrician joins the conductors with a connector and attaches the pigtail to the outlet terminal.
